In Search of Hess’ Triangle – Part 1

In late July, this Atlas Obscura article about “New York’s Smallest Piece of Private Property” came hurtling out of the internet and arrived on my doorstep.  Urban Planners and local historians delight, on the Isle of Manhattan there’s a tiny triangle of land emblazoned with tiles that spell out this message for all eternity:

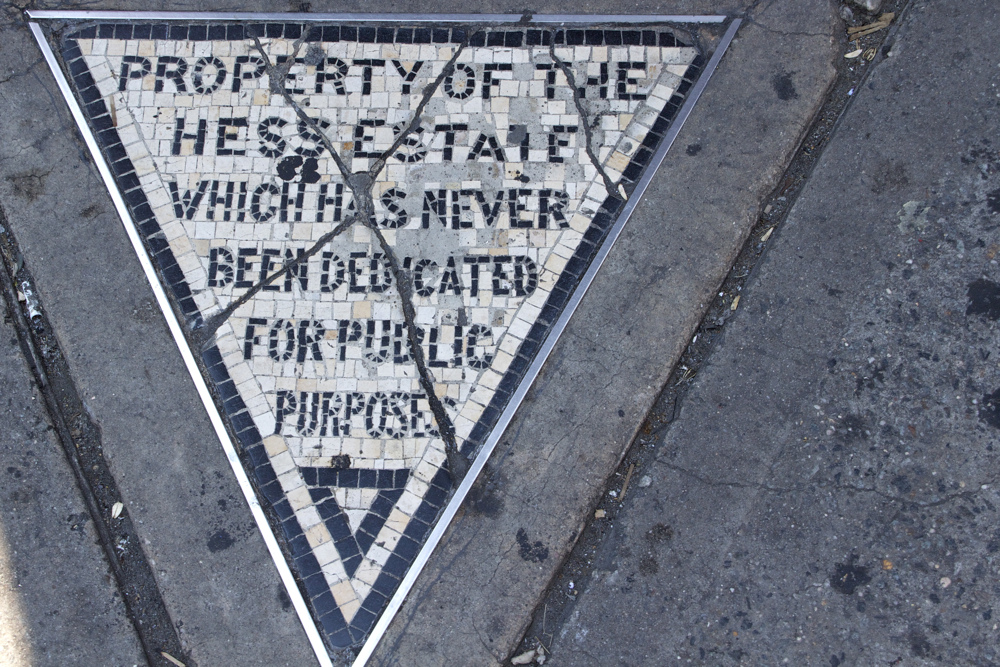

“PROPERTY OF THE HESS ESTATE WHICH HAS NEVER BEEN DEDICATED FOR PUBLIC PURPOSES”

5951834527_0fea53643c_b

Photo by David Gallagher via Flickr

Curiosity Piqued.  The article goes on to recount the story of how this triangle came to be: In the early 1900s, New York City extended 7th Avenue (and the IRT subway line beneath it) and drew a 100-foot wide path through 11 blocks of Greenwich Village.  If your property was between these lines, it was set to be demolished.  Our little outspoken triangle was the teeny, tiny corner of a property that once held an apartment building overlooking Sheridan Square, where Christopher and Grove Streets now intersect with 7th Avenue.  The owner of this apartment building was named David Hess.  He died a few years after the taking, but in 1922, his estate saw fit to leave a little message for the world to know what injustice had occurred in the name of progress.

IMG_1950

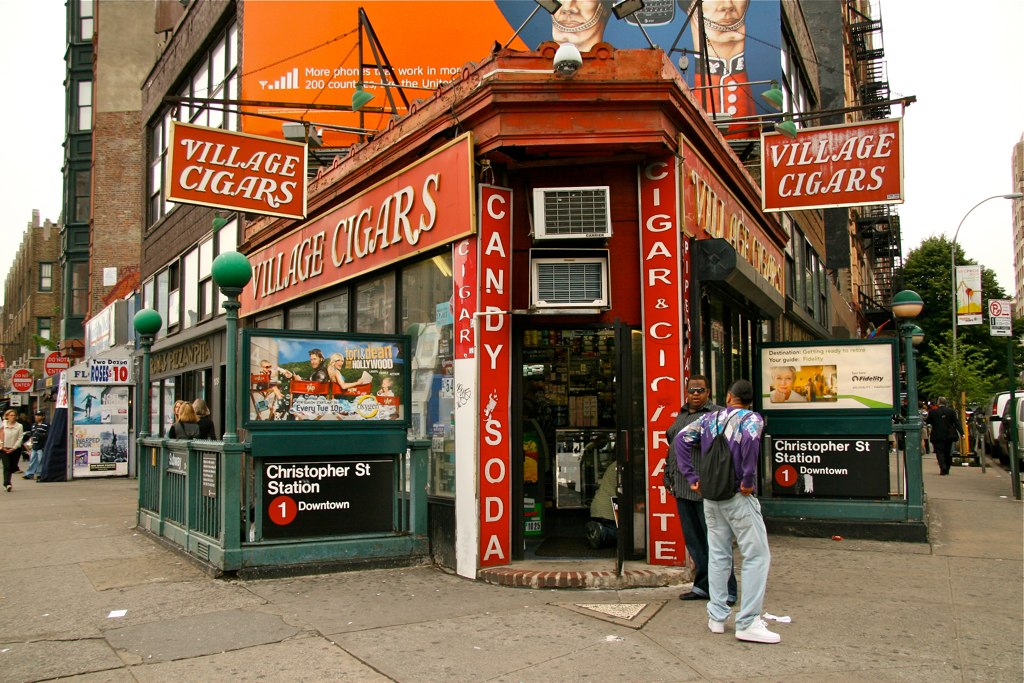

Hess’ Triangle can be found on the sidewalk in front of the entrance to Village Cigars at the corner of Christopher Street and 7th Avenue.

Photo by Dion Crannitch via Flickr

Naturally, I got to googling, and dug up everything I could about this amazing little triangle.  I wanted to know about the building that was there, when it was finally torn down, how hard Hess and his fellow property owners fought to save their buildings, and who made the decision to lay the tile.  It turns out there are many other triangles just like it, and you’ll never look at 7th Avenue in the village the same way again.  My first intuition was to check out the historic maps available from the New York Public Library to verify the existence of this doomed apartment building.

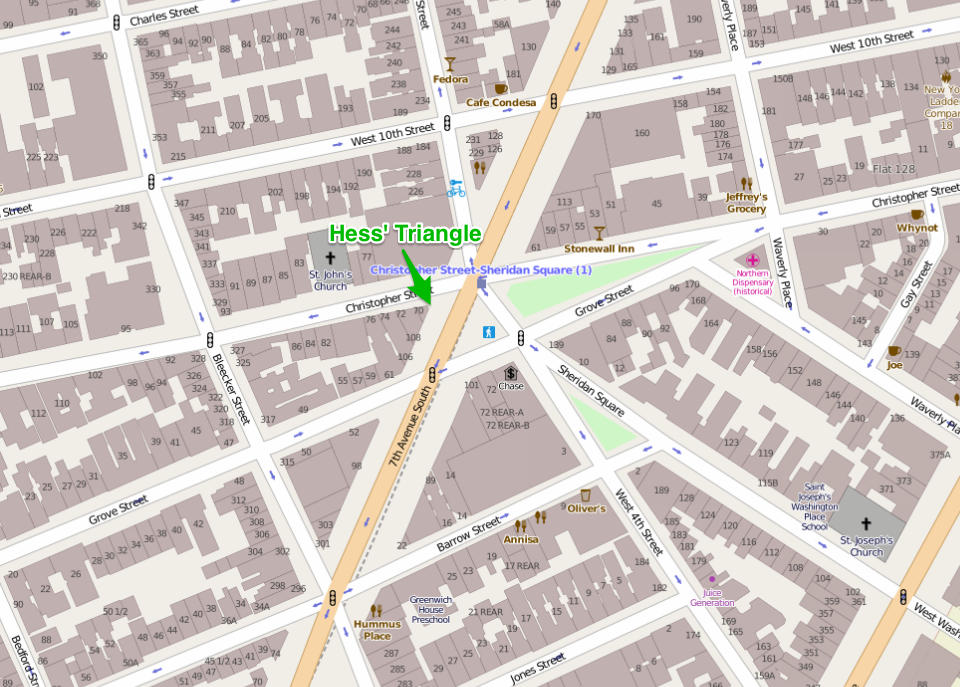

First, here’s a current OSM map to get you situated.  Hess’ Triangle sits at the southwest corner of the intersection of Christopher Street and 7th Avenue, in front of the entrance to the small triangular building that houses Village Cigars.

QGIS_2.4.0-Chugiak

The first map I found was the Bromley Atlas from 1897, which clearly shows the original plot:

_Plate_10__Bounded_by_W._14th_Street__Sixth_Avenue__Cornelia_Street__Bleecker_Street__Barrow_Street__Bedford_Street__Christopher_Street__Hudson_Street__W._10th_Street__Washington_Street__Charles_Street__West_Street__Hudson_River________Gans

The lot is marked “VORHES”, though some articles call it “Voorhees” or “Voorhis”, the name of the apartment building.  What’s even more interesting is the Block and Lot numbers, which remain the same today.  The 591 you see in the bottom left corner is the Block Number, and the 55 written inside the plot is the lot number.  These days, we refer to lots by their BBL, or Borough (1 digit), Block (5 digits), and Lot (4 digits).  So the BBL of the Vorhis Apartments would have been 1005910055!

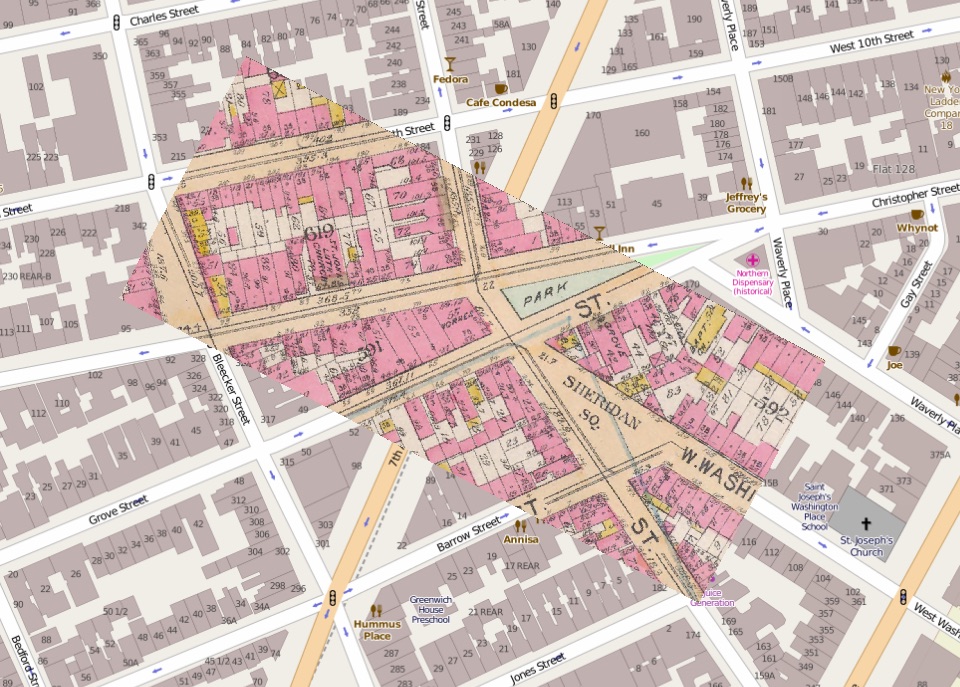

Having some fun in QGIS, we can orthorectify this historic map and overlay it on the modern map:

QGIS_2.4.0-Chugiak 2

If you follow the current building line of 7th Avenue, you can clearly see that it would nip a tiny little corner off of the Vorhis lot!  You can also see that the adjoining buildings also got clipped, and the triangle-shaped building that is now Village Cigars was once a mighty quadrangle with faces on Christopher and Grove Streets.

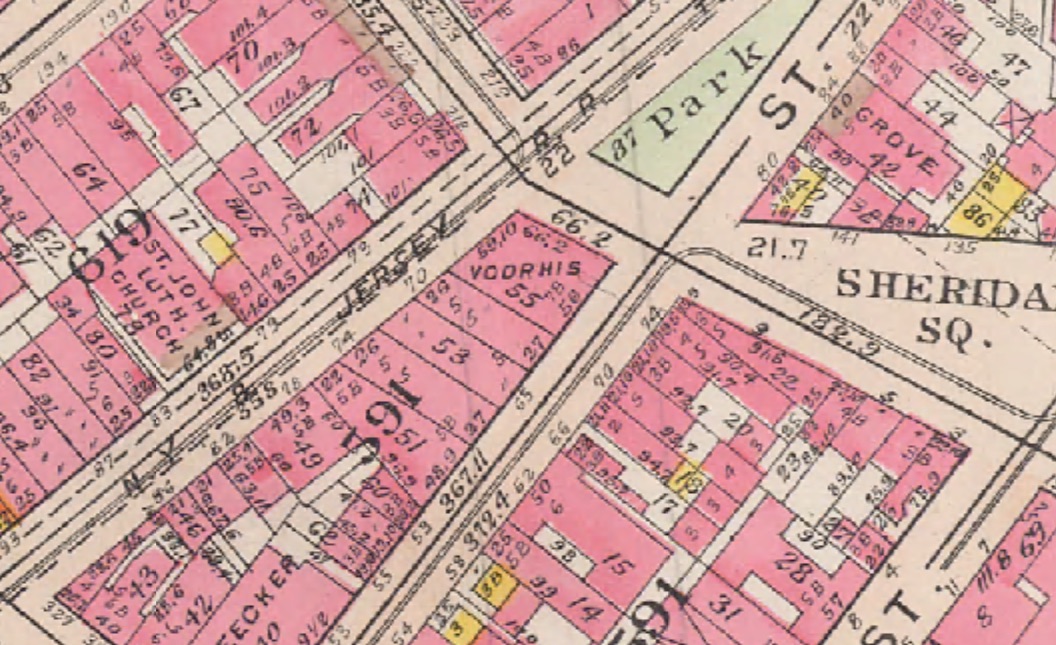

Another Bromley Atlas from 14 years later (1911) shows the building still standing, but the 100 foot-wide path for the 7th Avenue extension seems to be lightly sketched over the condemned buildings.  You can clearly see that a tiny corner of the lot, now spelled “Voorhis”, lies outside of the path of destruction.

_Plate_10__Bounded_by_W._14th_Street__Sixth_Avenue__Cornelia_Street__Bleecker_Street__Barrow_Street__Bedford_Street__Christopher_Street__Hudson_Street__W._10th_Street__Washington_Street__Charles_Street__and__Hudson_River__Piers_48-55__West_

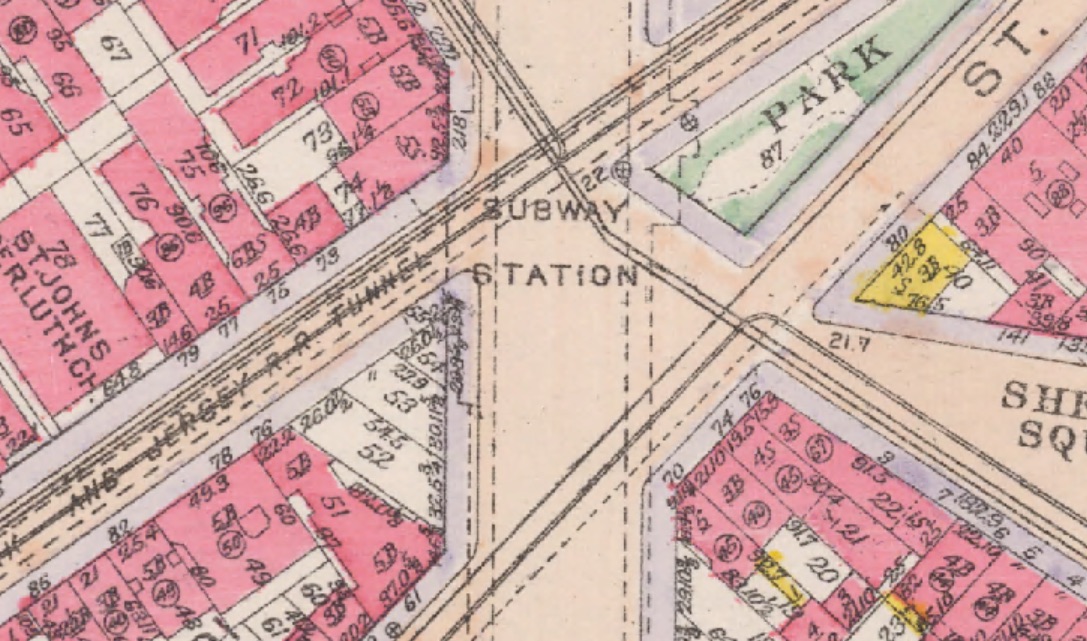

Finally, in another Bromley Atlas from 1916, the 7th Avenue Extension is complete:

_Plate_35__Bounded_by_W._11th_Street__W._4th_Street__Perry_Street__Waverly_Place__Charles_Street__Greenwich_Avenue__Sixth_Avenue__W._8th_Street__Washington_Square__W._3rd_Street__Sixth_Avenue__Cornelia_Street__Bleecker_Street__Barrow_street  But wait, is that a 55 I see at the corner of Christopher Street and 7th Avenue?  Lot 55 lives!  We can’t see the line separating it from Lot 54 at this resolution, but it’s there.

So exactly how big was Hess’ Triangle?  Using Open Data, we can figure it out.  Articles state that it was sold in the 1930s to the adjacent building (Lot 54, now Village Cigars).  Lets take a look at New York City’s PLUTO data.  Note the BBL I mentioned earlier.  There is no more lot 55, it’s been combined with lot 54:

Identify_Results_and_QGIS_2.4.0-Chugiak

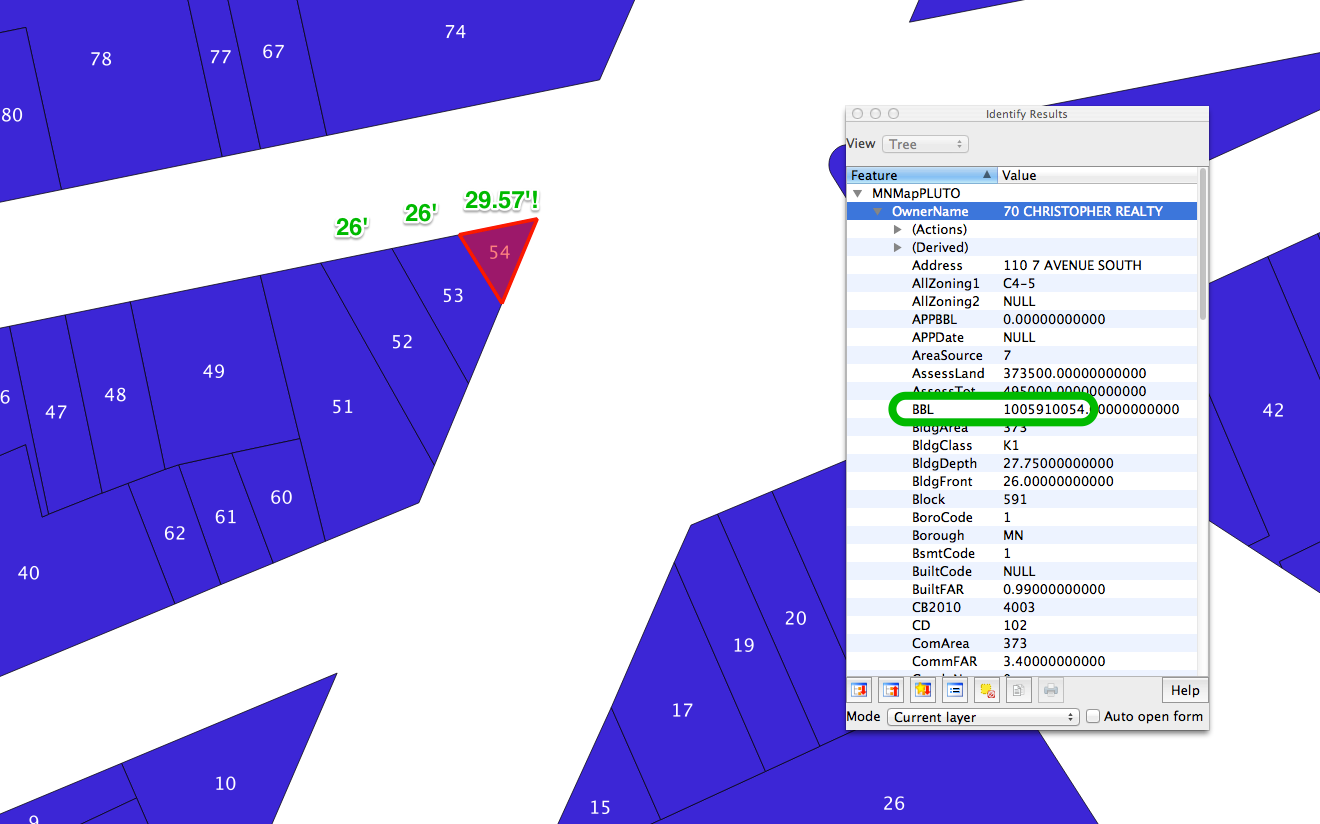

All three of the Bromley Atlases shown above show that the Christopher Street faces of lots 52, 53, and 54 are each 26 feet.  Using QGIS, we can measure each one. The measurements match up for lots 52 and 53, but lot 54’s Christopher Street Edge is 29.57 feet!  So one edge of Hess’ Triangle was 3.57 feet long.  Assuming the edge that ran between Christopher and Grove Streets was parallel to those of its neighbors, we can actually separate the polygon from lot 54 and give Hess’ Triangle its rightful lot number of 55 once again!

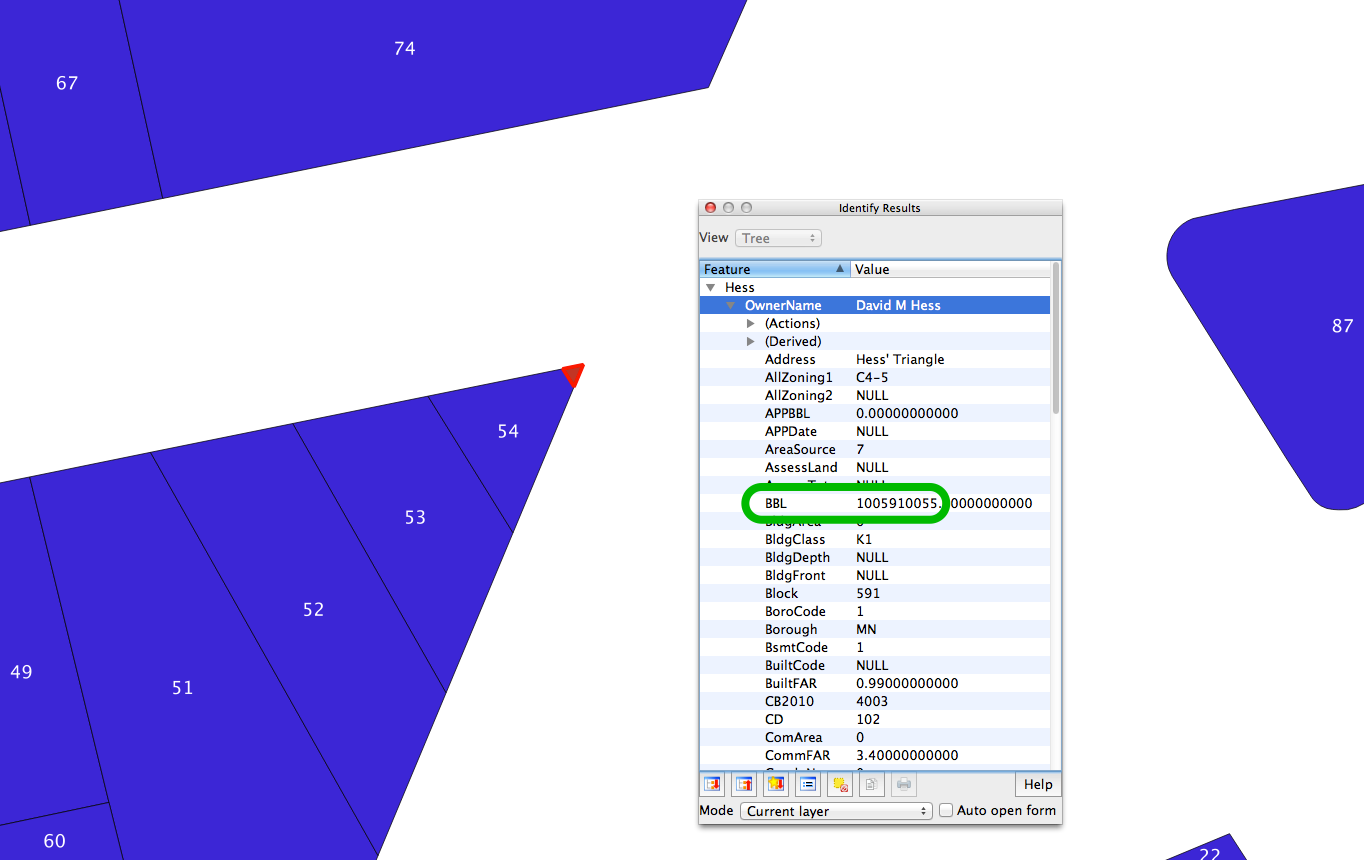

Identify_Results_and_QGIS_2.4.0-Chugiak 2



There it is!  According to QGIS, its area is about 7.3 square feet.  For all you geonerds, here’s Hess’ triangle as a shapefile (NY State Plane Long Island feet) and GeoJSON (WGS84).

hess.zip (Shapefile)

hess.geojson (Geojson saved as .txt because WordPress doesn’t allow you to upload geojson)

Edit 9/3/14: My friend and fellow map nerd Elliott Plack in Baltimore uploaded the geoJSON to github so you can see it on a map.



Coming in Part 2:

  • Lots of original news articles referencing David Hess’ Doomed Building, and one written the day after the tiles were laid in 1927.
  • Analysis of some of the other tiny triangles left behind by the 7th Avenue Extension

Stay tuned, and thanks for reading!

Here’s Part 2!
